We manufactures of small and large scale Media Preparation Vessels for Fermenters, Bioreactors and related products. Our systems are made up of SS 316L stainless steel of high grade and as per ASME BPE Guidelines. The systems are insulated with high grade mineral wool and covered with stainless sheet.

Technical Specifications

SS 316L Vessel, Jacketed, non jacketed Vessel, Jacket Insulated, Capacity from 10L to 10000L, Mixing assembly- Top driven Agitator with single mechanical seal or Bottom driven magnetic mixer, H/D: as per clients requirement, safety valve in vessel and Jacket, Skid mounting and Leg Mounting system, Compact design, minimum dead leg, Baffles for proper mixing, In Situ Steam Sterilizable, SCADA or HMI display, Full Automation / Semi Automation Control, Stirrer RPM Display, Auto chiller and Heater. Addition lines and ports provided for PW inlet, medium inlet, Acid alkali inlet, peristaltic pumps for ph control.

We manufactures of Process Vessel for Microbiology, Pharma, DNA proteins, Cell cultural, Bio fertilizer, Vaccine, Bio pesticide, Bio fuels related products. We manufacture process Vessels duly made up of SS 316L stainless steel of high grade and as per ASME BPE Guidelines. The Process vessels are insulated with high grade mineral wool and covered with stainless sheet.

SS 316L Vessel, Jacketed, non jacketed Vessel, Jacket Insulated, Capacity from 10L to 10000L, Mixing assembly- Top driven Agitator with single mechanical seal or Bottom driven magnetic mixer, H/D: as per clients requirement, safety valve in vessel and Jacket, Skid mounting and Leg Mounting system, Compact design, minimum dead leg, In Situ Steam Sterilizable, SCADA or HMI display, Full Automation / Semi Automation Control, Stirrer RPM Display, Auto chiller and Heater.
Addition lines and ports provided for PW inlet, medium inlet, Acid alkali inlet, peristaltic pumps for ph control.

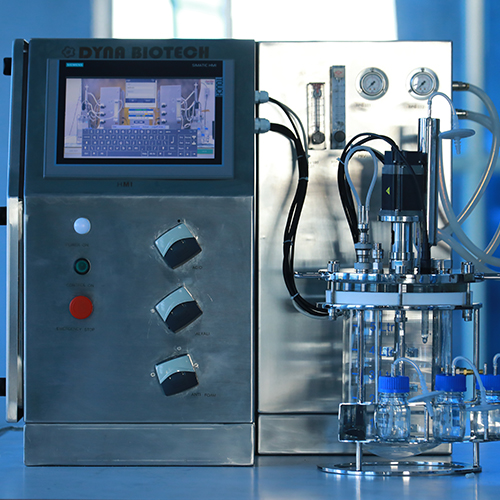

Dyna Biotech Lab Fermentor is designed as entry-level Fermenter for easy control by beginners and experienced user alike. It is therefore ideal for educational and Industrial purposes. It meets your specific needs; it covers a wide range of applications and complies with the requirements of a validated GMP regulation.

Technical Specifications

Borosilicate Glass Vessel, Jacketed, Non Jacketed Vessels, Capacity from 2L to 10L, Mixing assembly- Top driven Agitator, H/D: 250/150 mm, Mounting stand with safety ring, Head plate assembly SS 316L, Height adjustable Ruston Turbine impeller with 6 blades, 3 Baffles, Air Sparger, HMI display, Full Automation Control, Auto calibration of ph & Do2 Sensors, Stirrer RPM Display, Auto chiller and Heater.

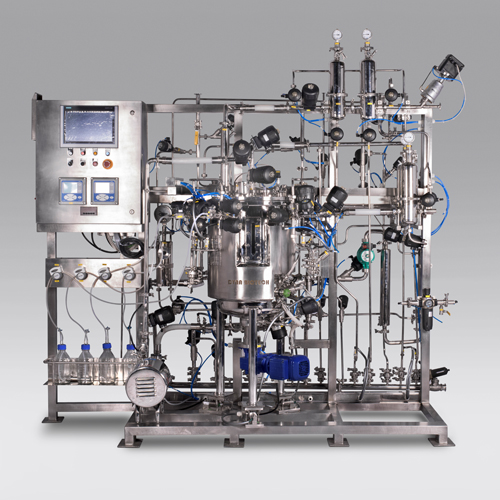

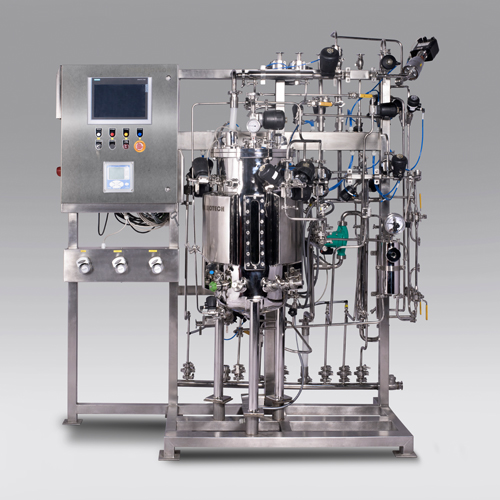

We manufactures of Pilot and Production large scale fermenter for Microbiology, Pharma, DNA proteins, Cell cultural, Bio fertilizer, Vaccine, Bio pesticide, Bio fuels related products. We manufacture fermenter duly made up of SS 316L stainless steel of high grade and as per ASME BPE Guidelines. The fermenter is insulated with high grade mineral wool and covered with stainless sheet.

SS 316L Vessel, Jacketed Vessel, Jacket Insulated, Capacity from 10L to 10000L, Mixing assembly- Top driven Agitator or Bottom driven agitator with single and double mechanical seal, H/D: as per clients requirement, safety valve in vessel and Jacket, Skid mounting and Leg Mounting system, Compact design, minimum dead leg, Height adjustable impeller with 6 blades, Baffles, Air Sparger, Rotameter and MFC for Air, O2 and other Gas control, In Situ Steam Sterilizable, SCADA or HMI display, Full Automation / Semi Automation Control, Auto calibration of ph & Do2 Sensors, Stirrer RPM Display, Auto chiller and Heater.
Addition lines and ports provided for culture inlet, medium inlet, Acid alkali inlet, peristaltic pumps for ph control.

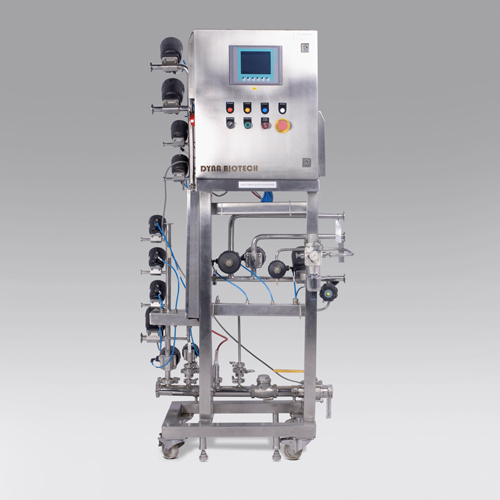

CIP is a method of cleaning the interior of pipes, vessels, process equipment, filters and associated fittings, without disassembly the benefit to industries that use our CIP is that the cleaning is faster, less labor intensive and more repeatable and poses less of a chemical exposure risk to people. Our SIP system must be measure and control steam temperature, pressure and floe to ensure adequate steaming. Calculating of Fehrenheit or other measure is often required to meet process needs to people.
